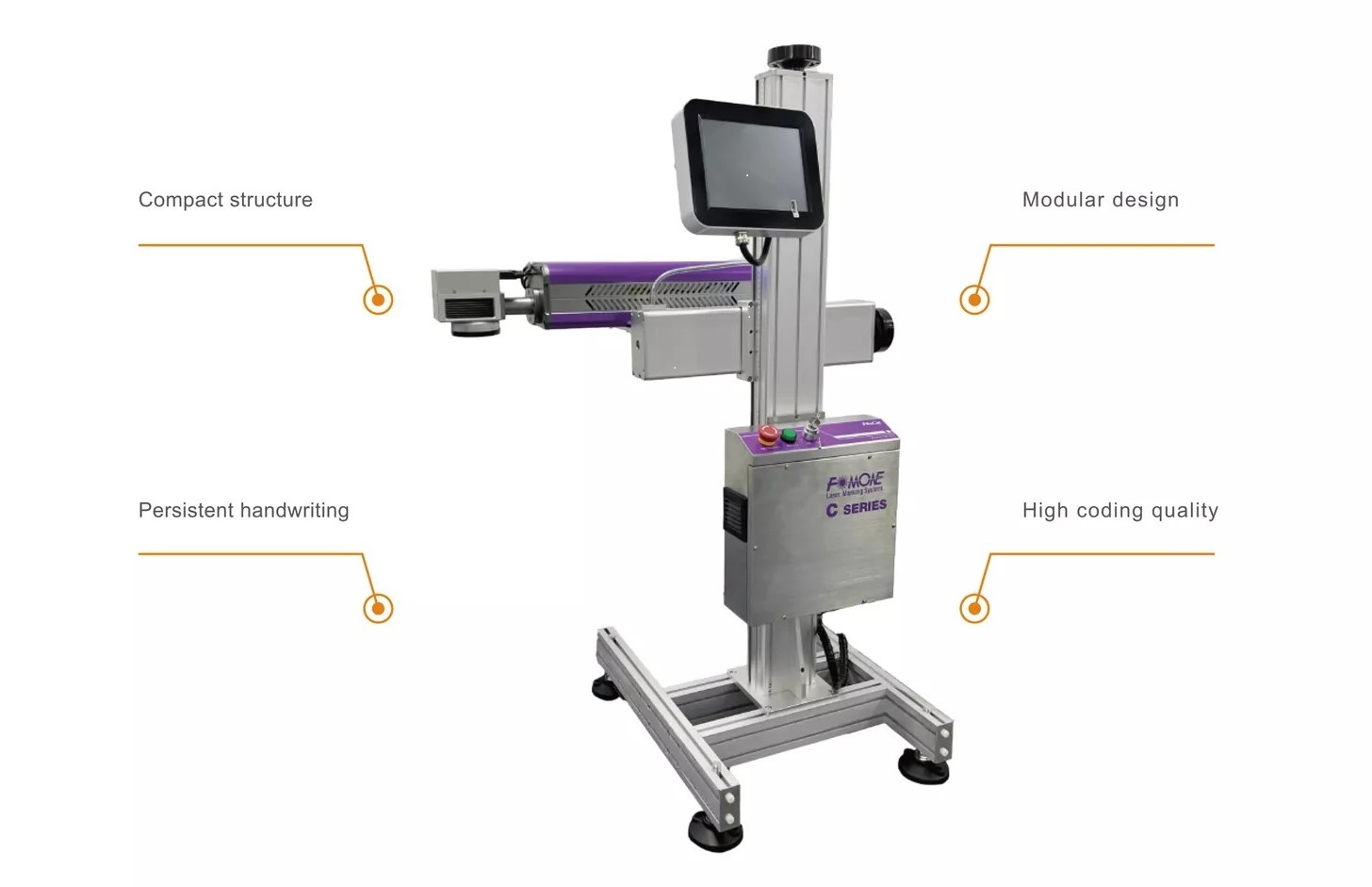

Fomone Eco UV Laser Coding System

Industrial Laser Coding EC-JET printer provides a way to apply printing information to a variety of products. This information is usually production date, production code, promotional information, product or company logo, product traceability, and many other information. It can be widely used in pharmaceutical, chemical, food, building materials, tobacco, ceramics, electronics and other industries.

Product Advanced Capabilities


Printer Features

  • Laser Wave Length: 355nm
  • Laser Power: 3w
  • Marking Head rotation: 0 – 360
  • Cabinet Material: Industrial-grade stainless steel and industrial-grade aluminum housing.
  • Safety Certificate: CE certification
  • Main Control: Touchscreen control
  • Operating system: Linux
  • Cooling system: Water Cooling
  • Operating Temperature: 5-40C, Humidity up to 90% non-condensing
  • Protective Grade: IP54
  • Focusing Lens: Within 700x700mm
  • Marking Type: Dot, Lineation.
  • Minimum Line Width: 0.01mm
  • Repeat Positioning Accuracy: 0.01mm
  • Marking Area: Standard 110x110mm
  • Marking Lines: Random within marking Area
  • Linear Speed: 0-300m/min (Depending on the material and marking content)
  • Text Type: BMP/DXF/HPGL/JPEG
  • Barcode: Barcode, QR Code
  • Real-time Clock: Dynamic date and time in real time.
  • Message Editing: Print information can be edited independently, allowing creation, editing and calling.
  • Counter: The counters show the total number of passes and the total number of prints.
  • Communication Port: RS-232, Ethernet (100/1000Mbit)
  • Power Supply: AC220V, 50-60HX, 800W
  • Dimensions: Laser Head Dimension: 560x230x200 (mm)

Control Cabinet Dimension: 564x500x296 (mm)

Touchscreen Dimension: 272x218x26 (mm)
